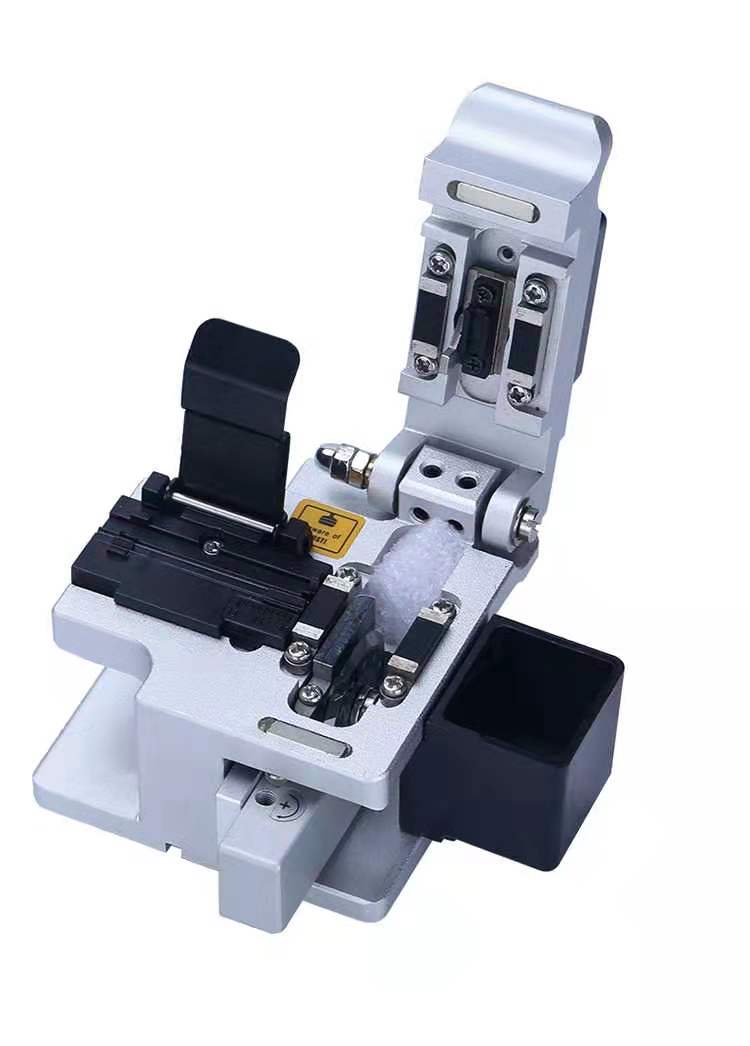

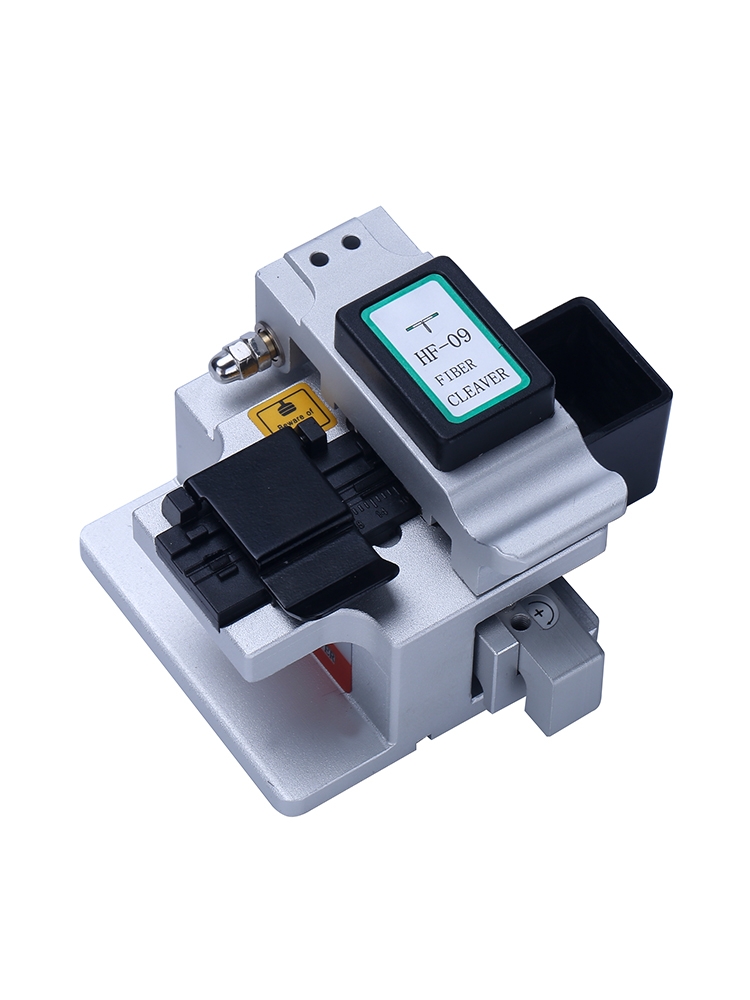

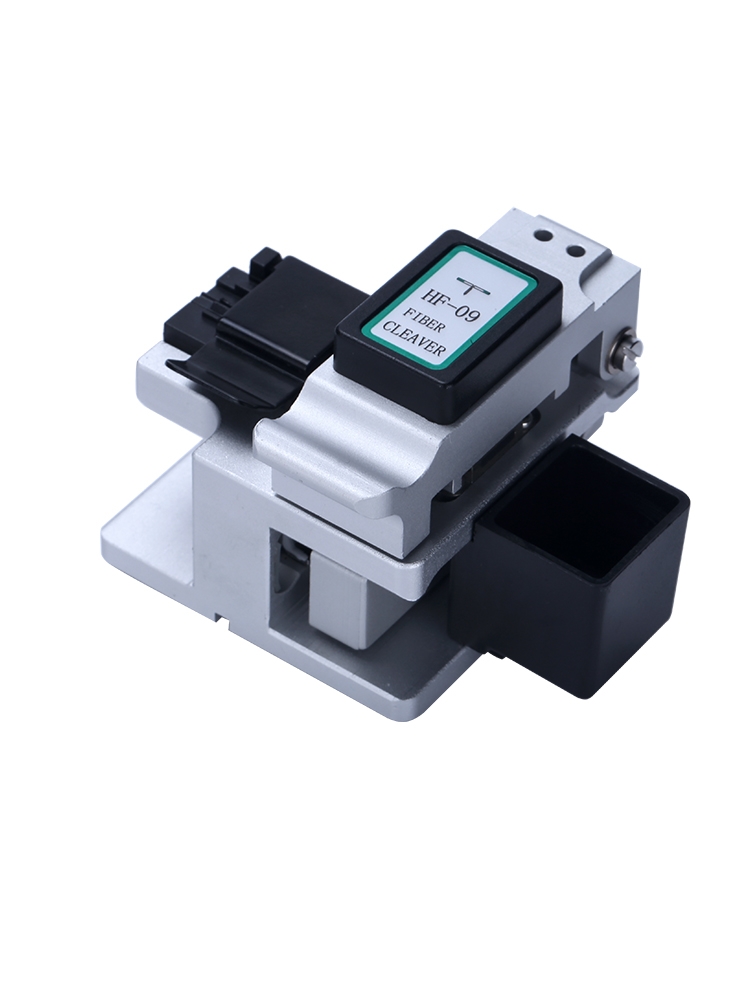

Superior High-Precision Optical Fiber Cleaver HF-09

  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09
  • Superior High-Precision Optical Fiber Cleaver HF-09

Overview:

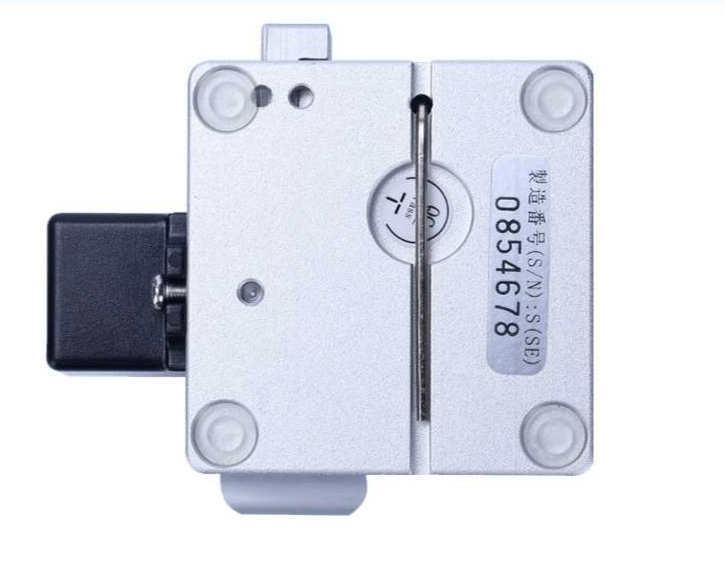

Fiber Optical Cleaver of HF-06 is a new generation product ,it's extremely light and reliable cleaver for the construction of optical network , Designed for excellent portability, the cleaver is ideal for FTTx applications. The attached hexagonal wrench on the bottom allow you adjust cleaver anytime and everywhere.


Features:

1. Processed with precision CNC crafts, bringing stable and durable main base and body.

2. Fine structure design.

3. Quality material giving high strength and stability.

    Main Body is aluminum material.

    Blade is magnesium alloy materials.

    Accessories: stainless steel. ( instead of plastic)

4. Quality control.

    Smooth blade carriage sliding block.

    Blade precision tested via fujikura or sumitomo fusion splicer.

5. Easy step operation to complete the cleaving and collection of waste fiber shards.

6. Convenient and quick to operate. Either hand-held or on table/worktop surfaces.

7. Very easy fiber setting and placing and, no need for blade height adjustment, thus improving work efficiency and low maintenance cost.

8. Smart design of pressure pads preventing the fiber from damage by the return of blade carriage.

9. Small, compact size and light weight.

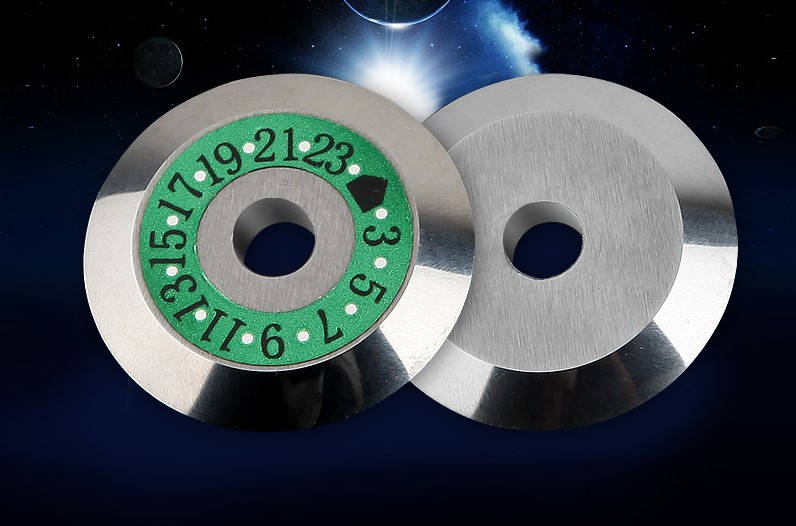

10. Blade has 24 Sharp Cutting Points.


Product Specification:

ModelHF-09
Cutting angle≤0.5°
Cutting length0.25mm fiber:9~16mm
0.9mm fiber:10~16mm
Optical Fiber Diameter125μm
Suitable for Optical Fiber Type0.25&0.9mm
size63W×56D×56H(mm)
weight280g
Service life of bladeAround 48000 fibers
Cutting end face of blade24 point
Tail fibre boxYes
Suitable operating temperature-40-80 ℃
Suitable for storage temperature-40-80 ℃
